COMPACT AND HIGHLY EFFICIENT
SCREW COMPACTORS PRODUCED TO
PERFECTION
→ For decades, our Screw Compactors have been the central and most successful H&G product. More than 8,000 screw compactors installed worldwide speak volumes about our expertise at H&G and have made us the technology and market leaders in this segment. Compact and highly efficient, our Screw Compactors can achieve almost twice the filling weights of conventional hydraulic presses by powerfully compacting large volumes of waste and recyclables. This is how the rising tide of waste and recyclable materials generated by trade and logistics can be controlled. The economic efficiency of disposal processes in commerce and industry can be increased, releasing vast savings potential.
FILLING WEIGHTS
THESE FIGURES SHOULD ONLY BE SEEN AS AVERAGE VALUES AND ALWAYS DEPEND ON THE SELECTED PERFORMANCE OF THE MAIN DRIVE MOTOR AND THEMATERIAL PROPERTIES.
| Material | Compaction |
| Paper and cardboard | Up to 250 kg/m³ |
| Heavy duty cardboard | Up to 250 kg/m³ |
| Residual waste | Up to 300 kg/m³ |
| Foils | Up to 200 kg/m³ |
| Wood | Up to 250 kg/m³ |
| PET bottles without deformer | Up to 150 kg/m³ |
| PET bottles with deformer | Up to 200 kg/m³ |
1. Screw spiral
2. Main drive motor
3. Screw spiral bearing
4. Drive pinion
5. Control unit
6. Central lubrication unit
7. Optional feeding device
8. Machine ratchet
9. Locking catch
10. Removable container
TECHNOLOGY AND MARKET LEADERS MADE IN GERMANY
As technology and market leaders, we manufacture our products at our site in South Westphalia and supply our customers and partners in over 35 countries.
SUSTAINABLE WASTE DISPOSAL TECHNOLOGY
With up to 100% more filling weight compared to conventional hydraulic compression systems, transport capacities can be optimised and CO2 emissions cut.
OPTIMISED PROCESSES AND SMART TECHNOLOGY
By using our Screw Compactors, you will optimise your workflows, increase process stability and be able to monitor them with our innovative H&G Smart Technology
Screw Compactor
THE PRINCIPLE
Performing all waste
disposal tasks economically
With our Screw Compactors, there’s nothing that can’t be broken down. Their compact design and electro-mechanical direct drive make H&G Screw Compactors completely reliable, low-maintenance machines. They are also robust, operator friendly and have a long service life. The separately driven feeding devices, specially designed by H&G, are adapted to each specific waste or recyclable fraction to guarantee smooth operation and a high throughput, even for large dimensions or special materials.
Standard-Size

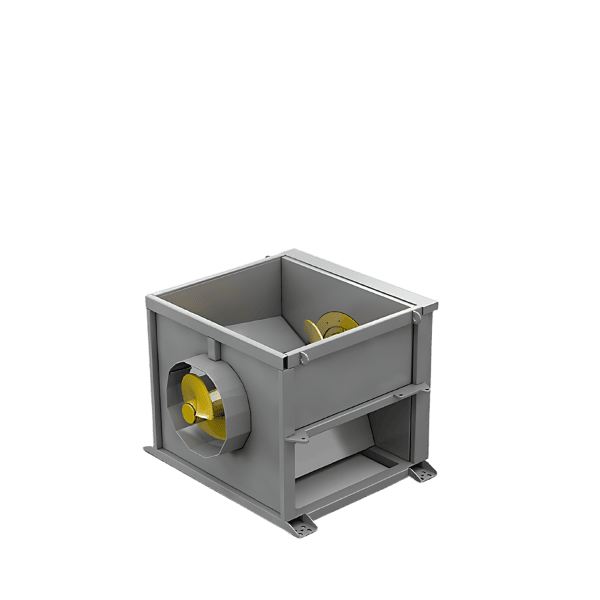

SCREW COMPACTOR
STANDARD-SIZE
STANDARD-SIZE
NO FEEDER DEVICE
FRACTIONS:
Residual waste, foils, polystyrene, pre-crushed PET bottles
SCREW COMPACTOR
STANDARD-SIZE
STANDARD-SIZE

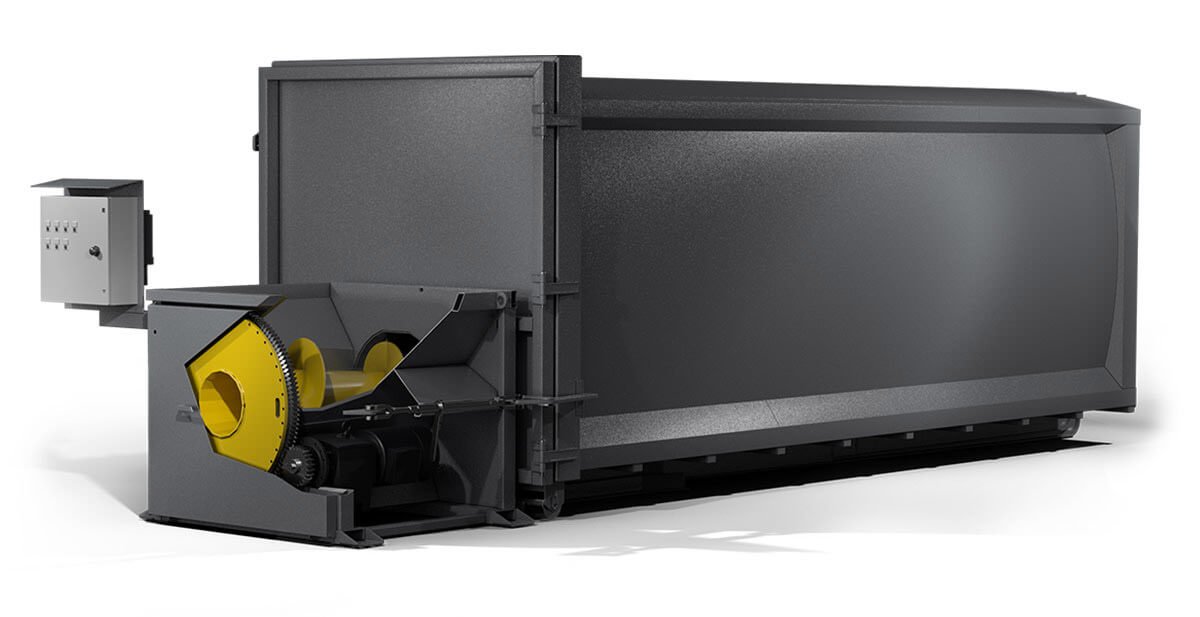

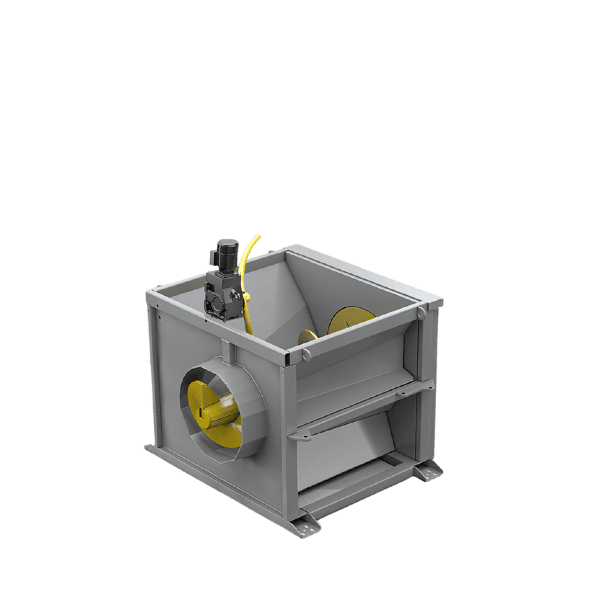

WITH “WHIRLER” FEEDER DEVICE
FRACTIONS:
Paper, card board, small cardboard packaging
SCREW COMPACTOR
STANDARD-SIZE
STANDARD-SIZE

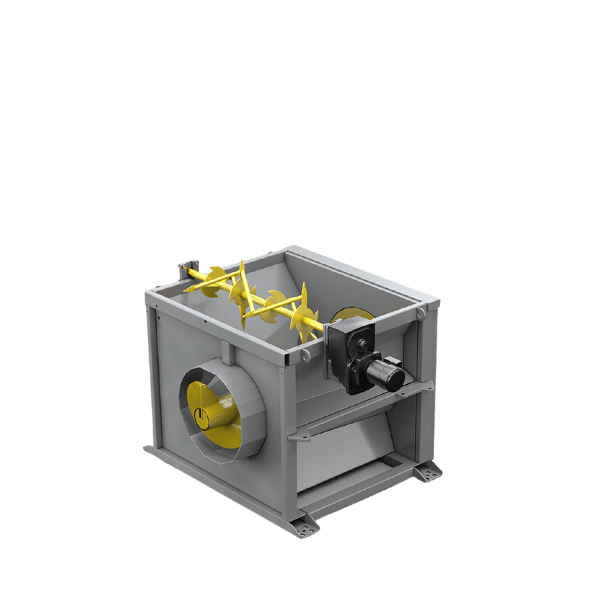

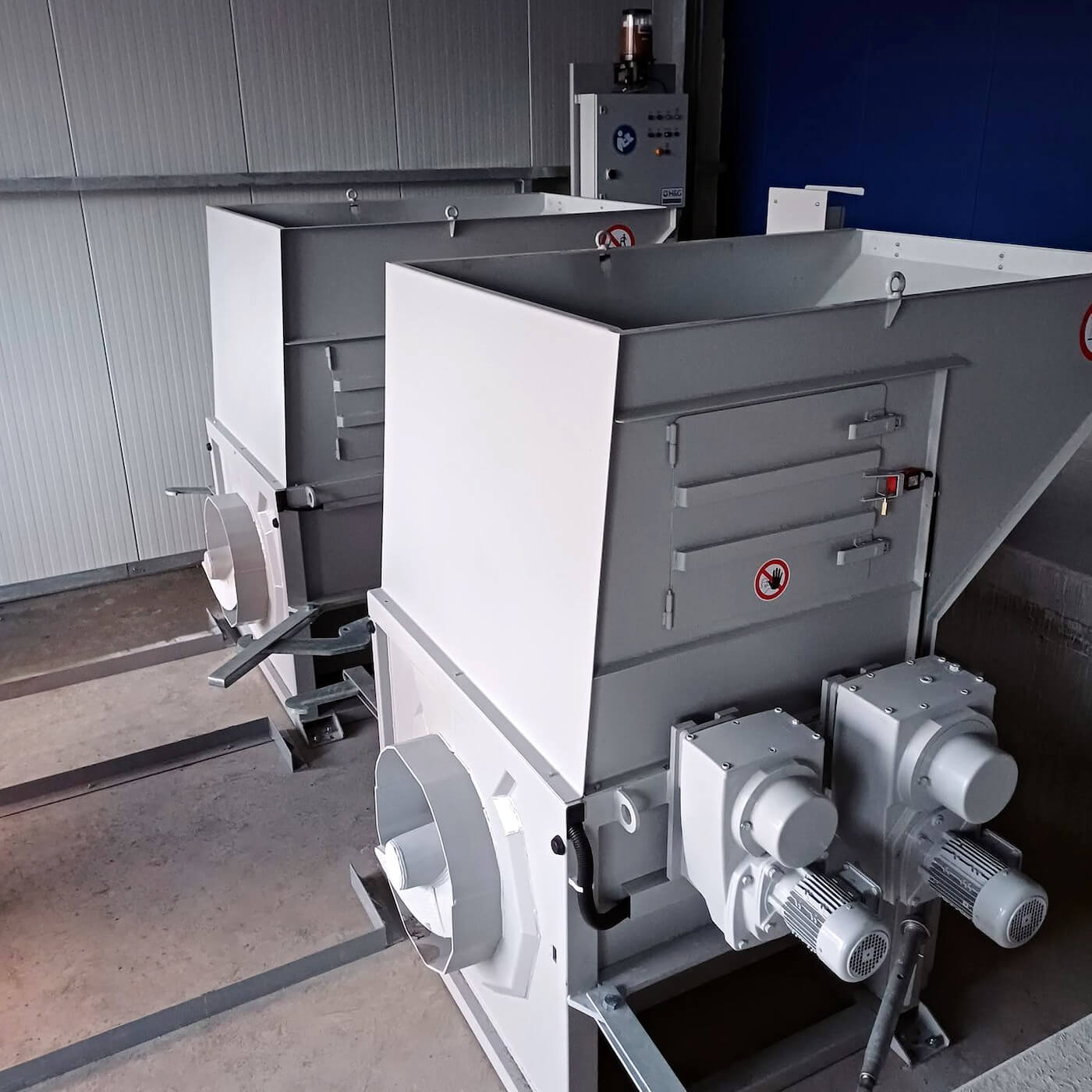

WITH HEAVY DUTY CARDBOARD FEEDER DEVICE AND A SHAFT FOR MANUAL LOADING
FRACTION:
Paper, card board, small cardboard packaging
SCREW COMPACTOR
STANDARD-SIZE
STANDARD-SIZE

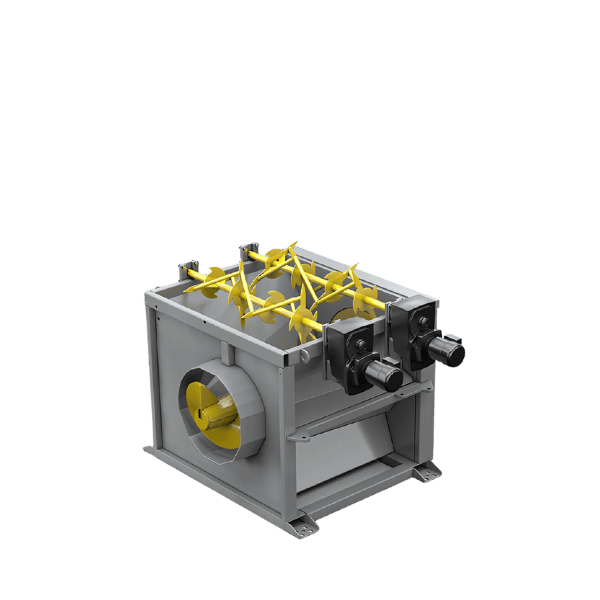

WITH HEAVY DUTY CARDBOARD FEEDER DEVICE AND TWO SHAFTS FOR MANUAL LOADING
FRACTIONS:
Heavy duty cardboard, flat cardboard packaging

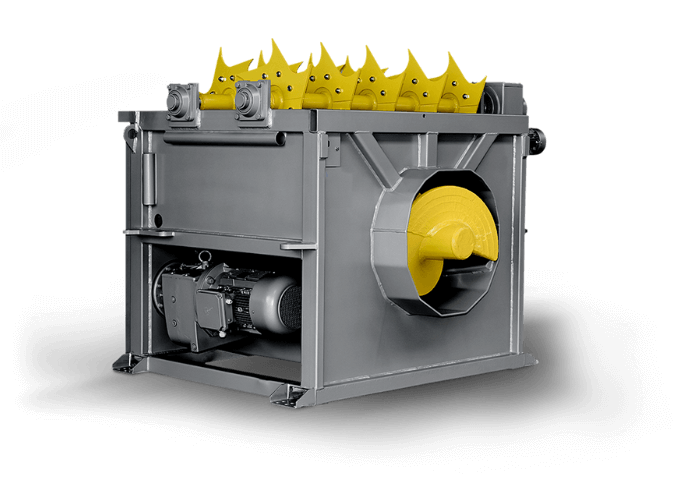

SCREW COMPACTOR
STANDARD-SIZE
STANDARD-SIZE

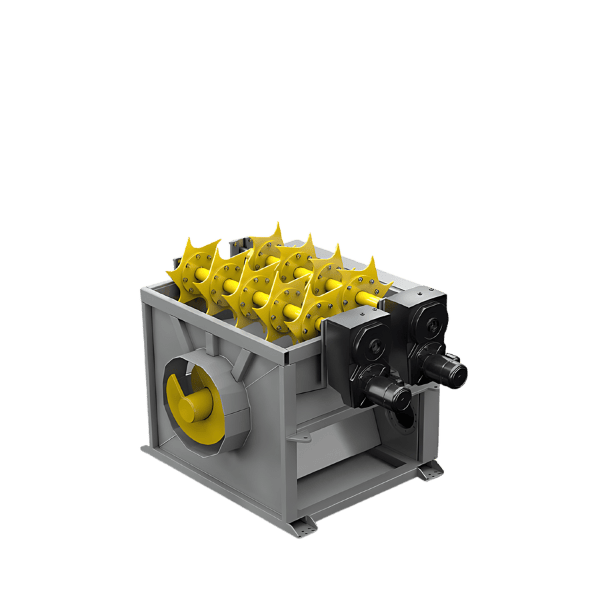

WITH FEEDER DEVICE CARDBOARD PRE-SHREDDER FOR AUTOMATIC LOADING
FRACTIONS:
Heavy duty cardboard, Octabin, flat cardboard packaging
Large-Size
SCREW COMPACTOR
LARGE-SIZE
LARGE-SIZE

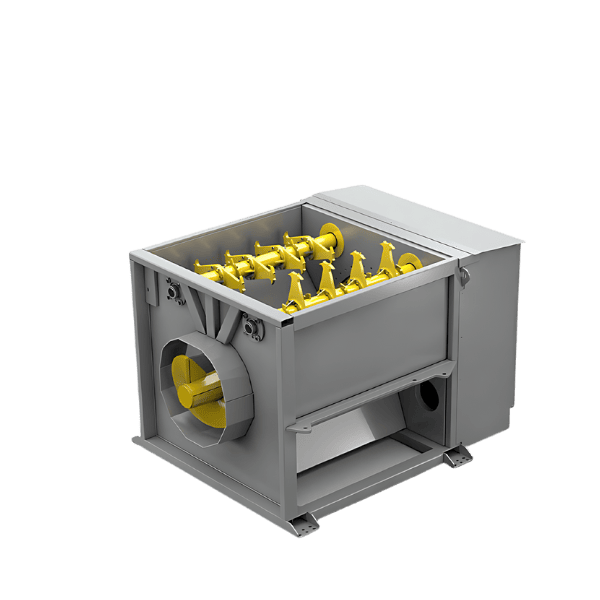

WITH FEEDER DEVICE WOOD CRUSHER
Fractions:
Disposable pallets,Euro pallets, small wooden boxes, fruit boxes, furniture timbers
X-Large-Size

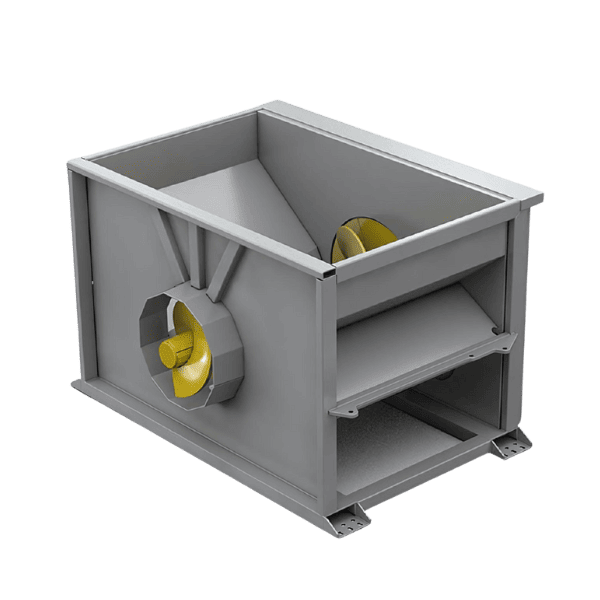

SCREW COMPACTOR
X-LARGE-SIZE
X-LARGE-SIZE
NO FEEDER DEVICE
Fractions:
Residual waste, foils, plastic and composite materials
SCREW COMPACTOR
X-LARGE-SIZE
X-LARGE-SIZE

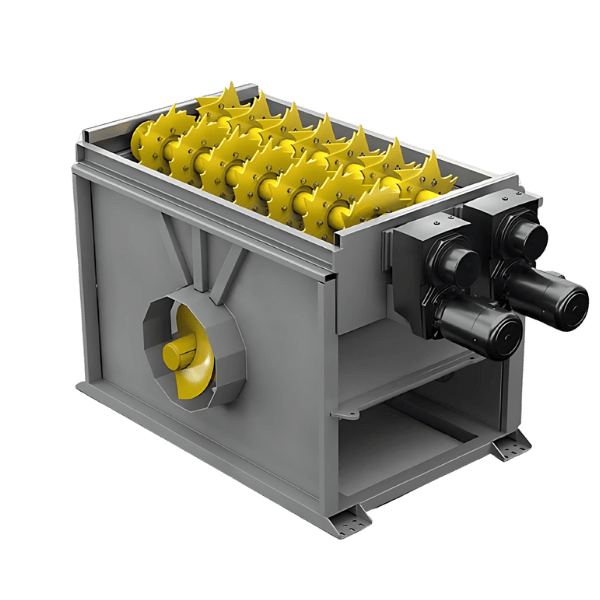

WITH FEEDER DEVICE CARDBOARD PRE-SHREDDER FOR AUTOMATIC LOADING
Fractions:
Heavy duty cardboard, Octabin, flat cardboard packaging
SCREW COMPACTOR
X-LARGE-SIZE
X-LARGE-SIZE

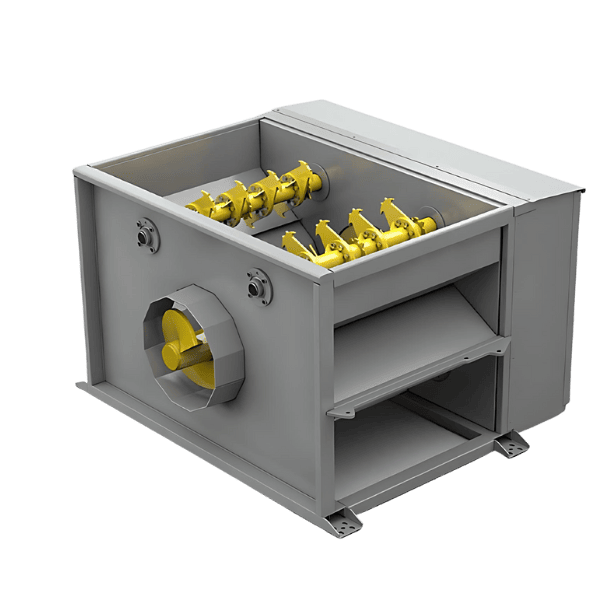

WITH FEEDER DEVICE WOOD CRUSHER
Fractions:
Disposable pallets, Euro pallets, large wooden boxes, furniture timbers

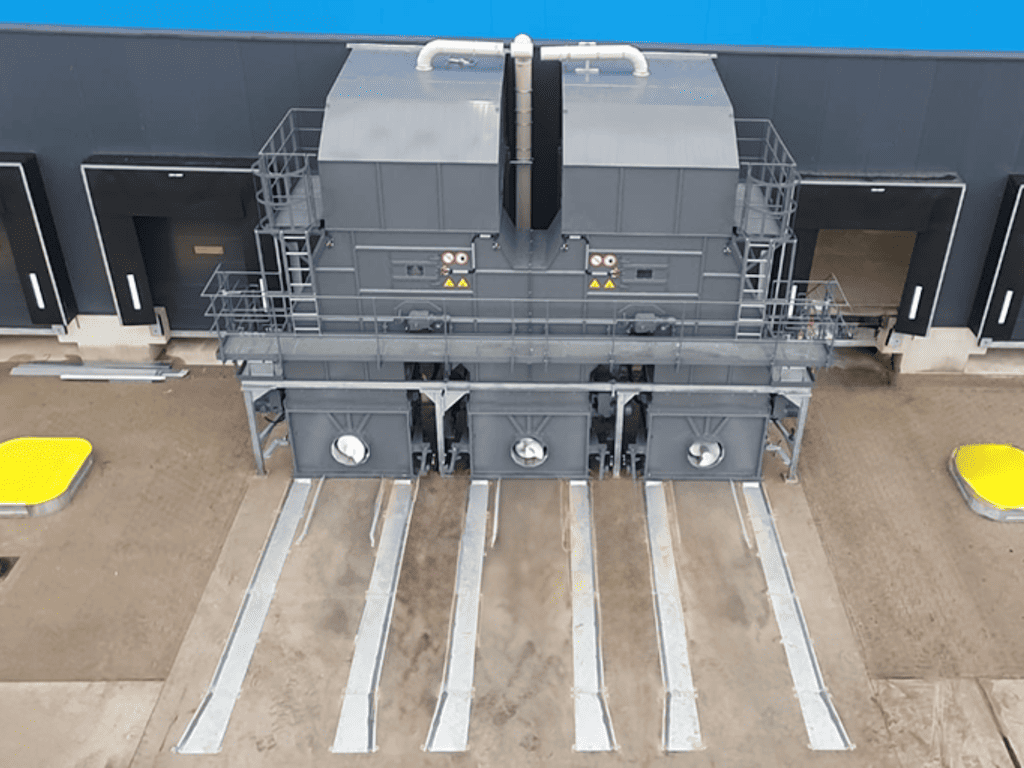

XX-Large-Size

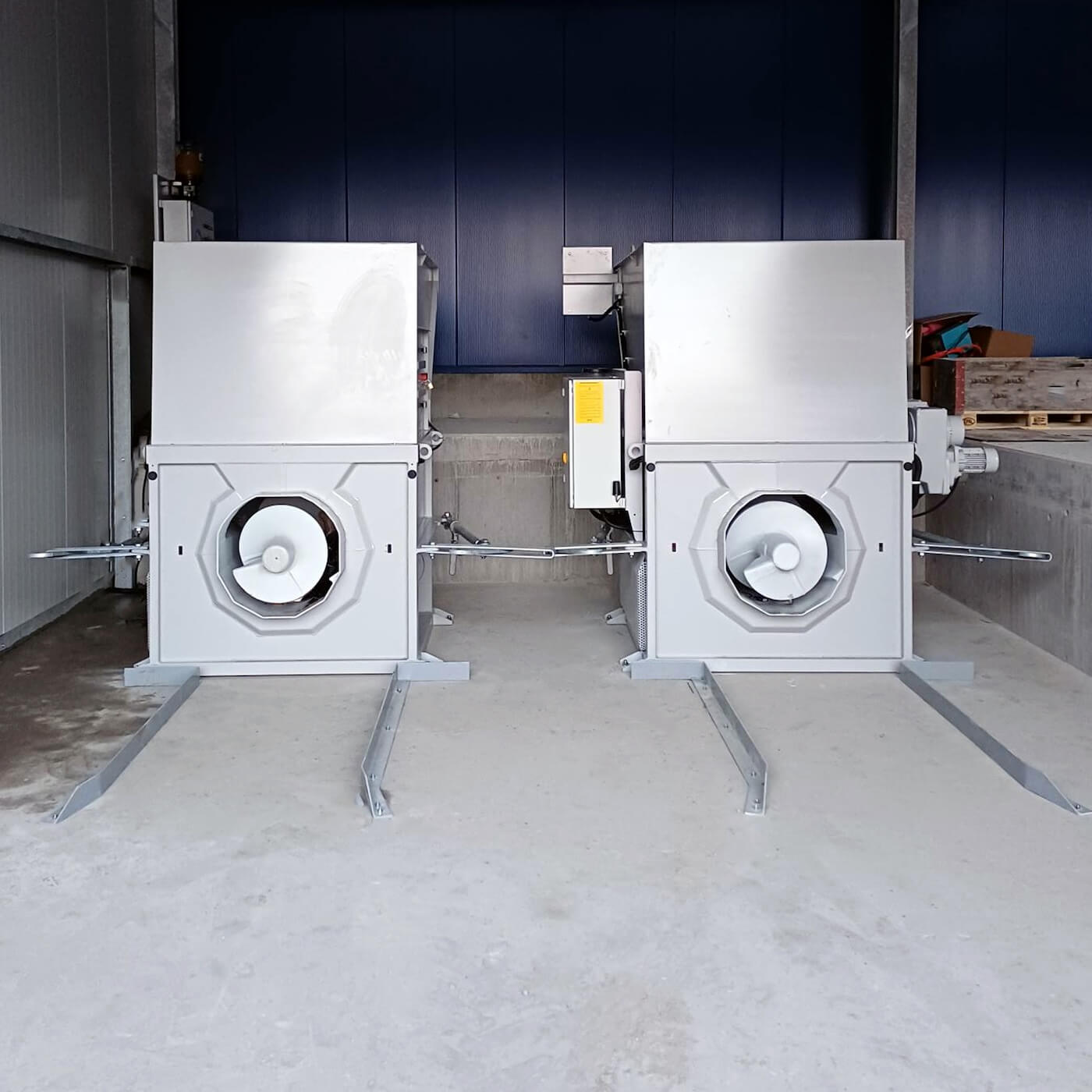

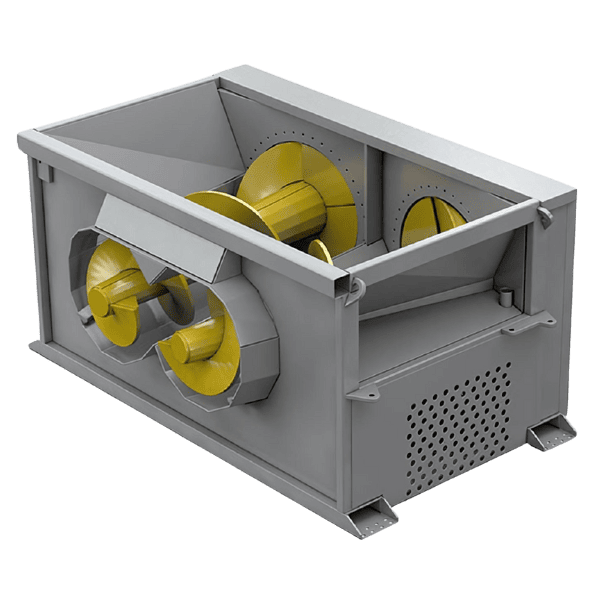

DOUBLE SCREW COMPACTOR
XX-LARGE-SIZE
XX-LARGE-SIZE
SINGLE CHAMBER, NO FEEDER DEVICE
Fractions:
Residual waste, foils, plastic and composite materials

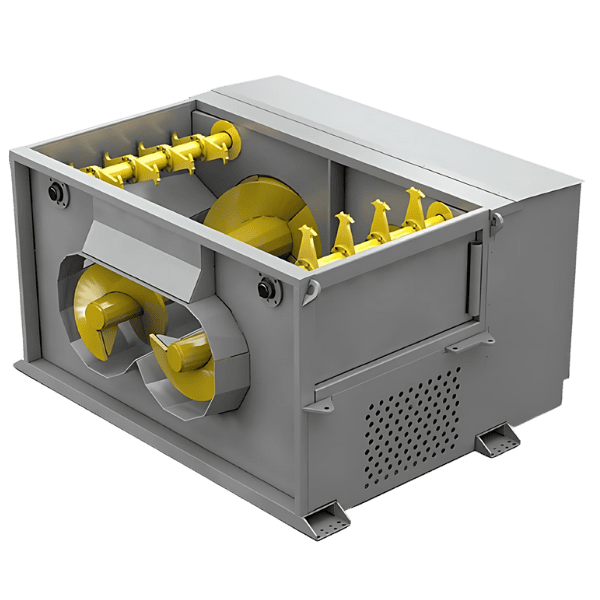

DOUBLE-SCREW COMPACTOR
XX-LARGE-SIZE
XX-LARGE-SIZE
SINGLE CHAMBER, WITH FEEDER DEVICE WOOD CRUSHER
Fractions:
large wooden boxes, furniture timbers

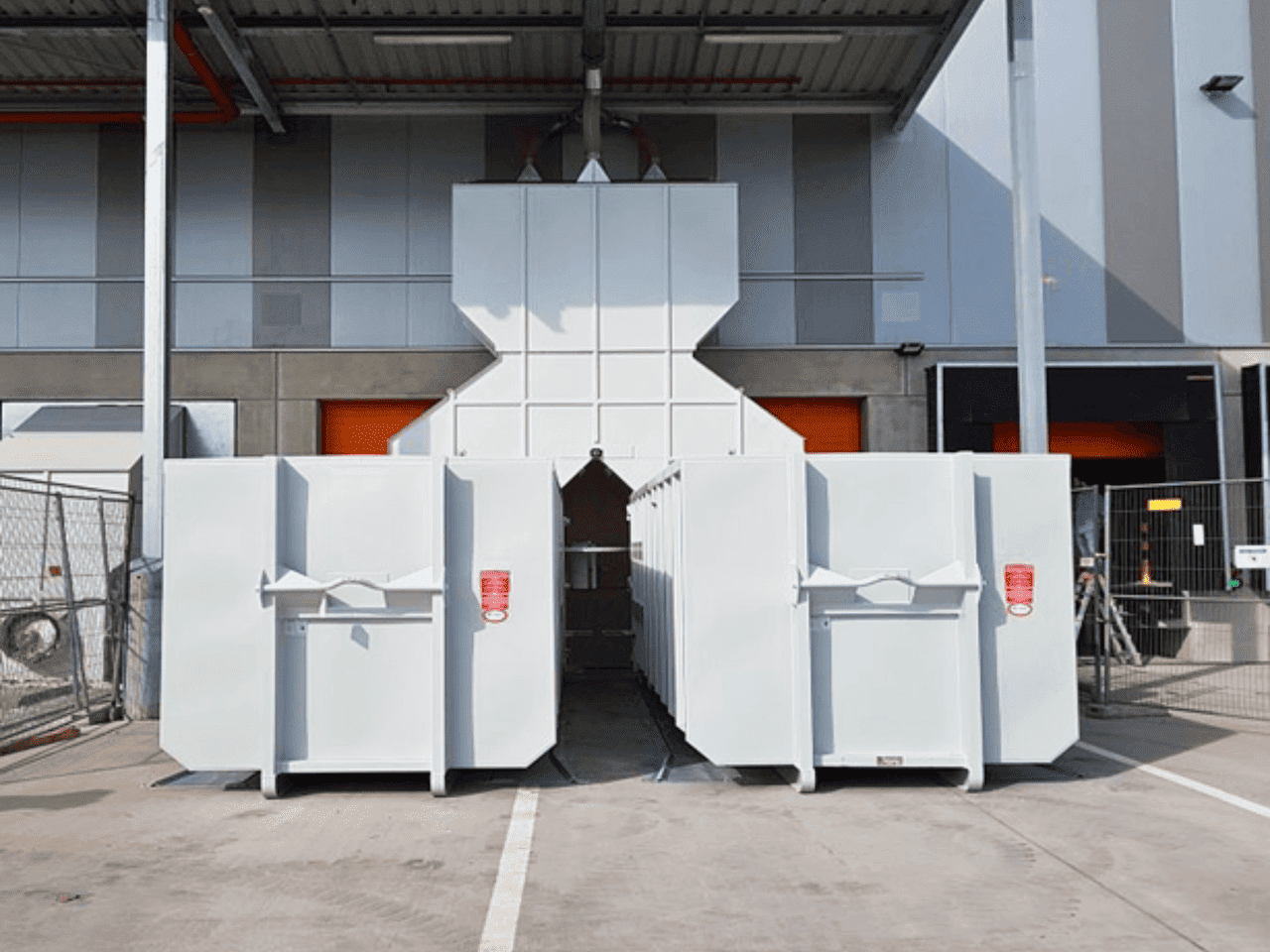

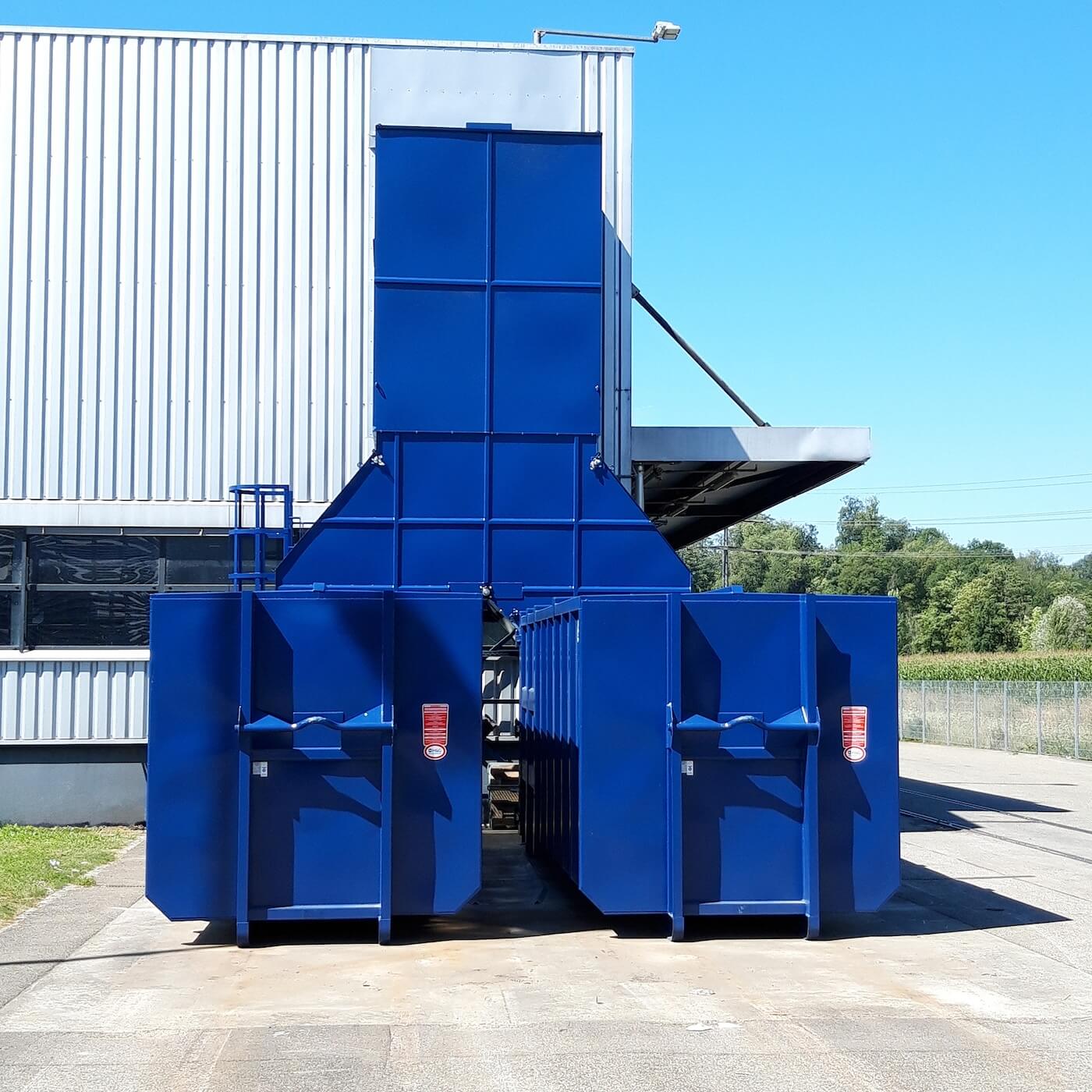

DOUBLE-SCREW COMPACTOR
XX-LARGE-SIZE
XX-LARGE-SIZE
TWIN CHAMBER, WITH AND WITHOUT FEEDER DEVICE
Fractions:
optionally for paper, cardboard, pre-crushed PET bottles, residual waste; foils
Small-Size

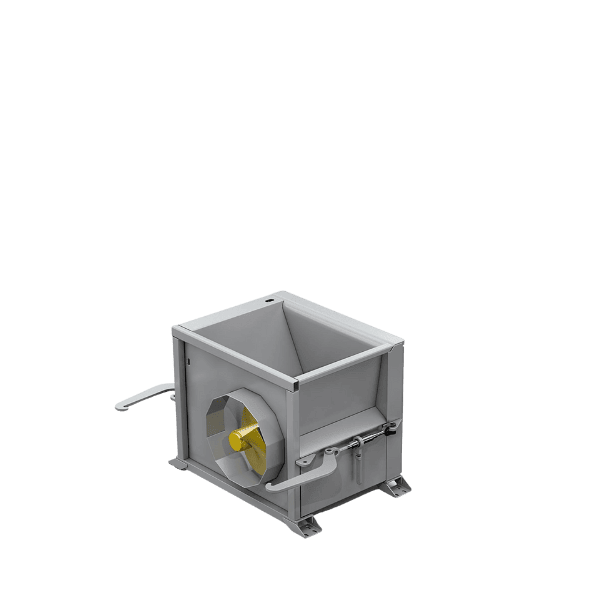

SCREW COMPACTOR
Small-Size
Small-Size
NO FEEDER DEVICE
Fractions:
Residual waste, foils, polystyrene, pre-crushed PET bottles
SCREW COMPACTOR
Small-Size
Small-Size

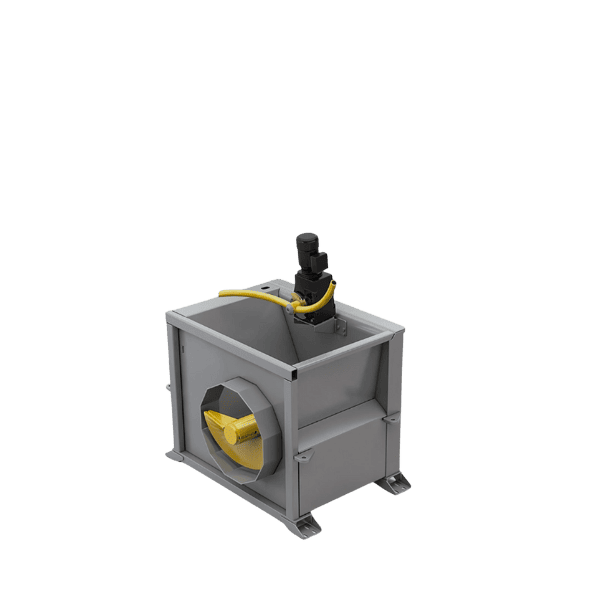

WITH WHIRLER FEEDER DEVICE
Fractions:
Paper, card board, small cardboard packaging
SCREW COMPACTOR
Small-Size
Small-Size
We can supply the SCREW COMPACTOR Small-Size as a mobile and a stationary solution. It is used when waste volumes are high but space is limited. Different container sizes can be flexibly adapted to the space available in each particular location.

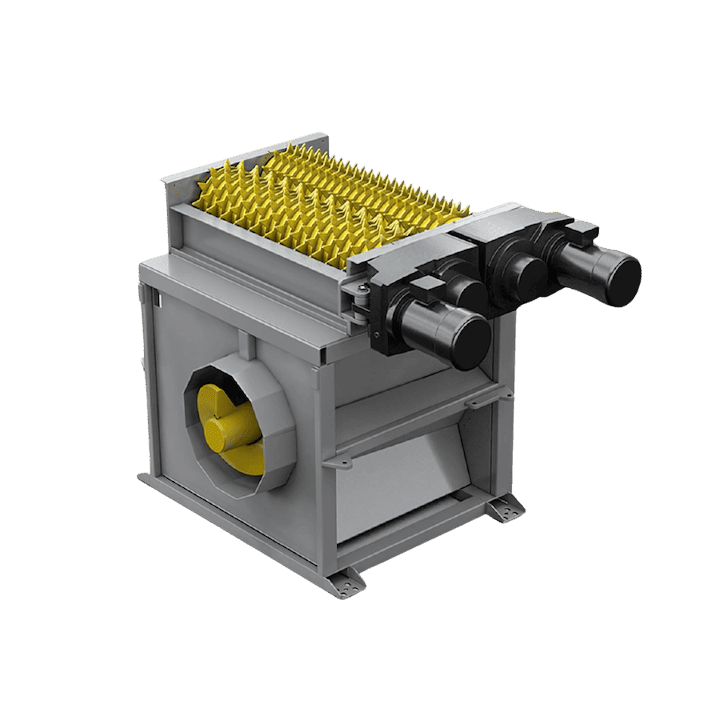

DEWATERING SCREW COMPACTOR
DEWATERING SCREW COMPACTOR
EQUIPPED WITH A PET BOTTLE DEFORMER
Fractions:
Dewatering and destruction of PET and plastic bottles

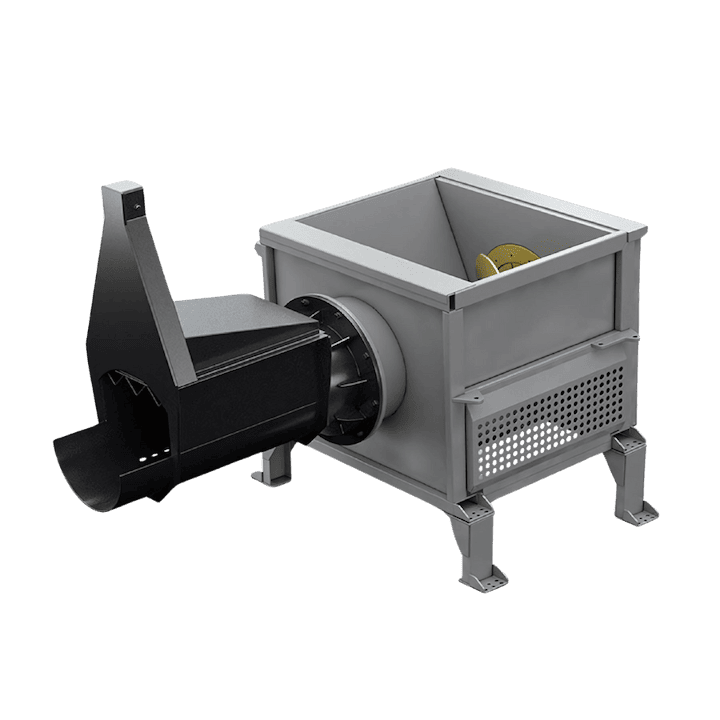

DEWATERING SCREW COMPACTOR
EQUIPPED WITH A HYDRAULIC PRESS CHANNEL
Fractions:
Dewatering of fruit and vegetables, food outer packaging

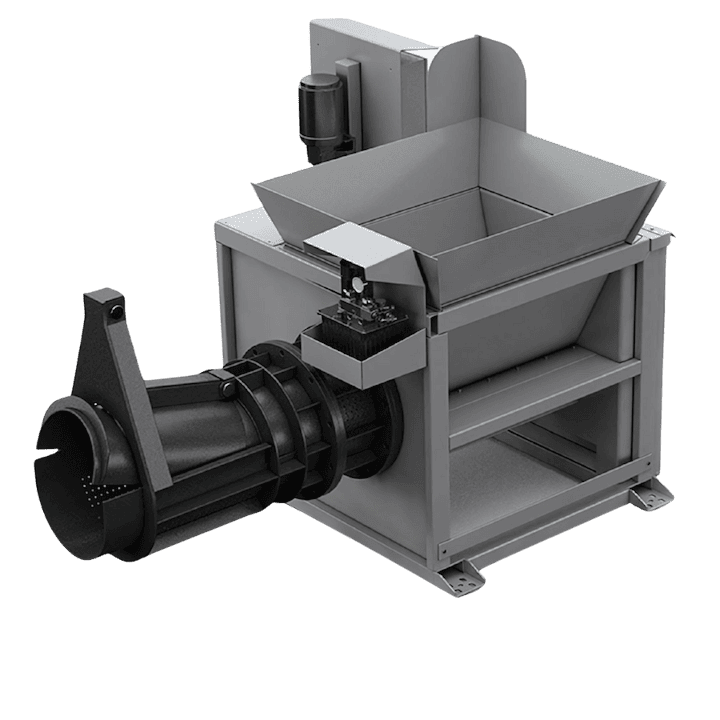

DEWATERING SCREW COMPACTOR
EQUIPPED WITH A HYDRAULIC PRESS CHANNEL
Fractions:
Dewatering of residuals and rejects

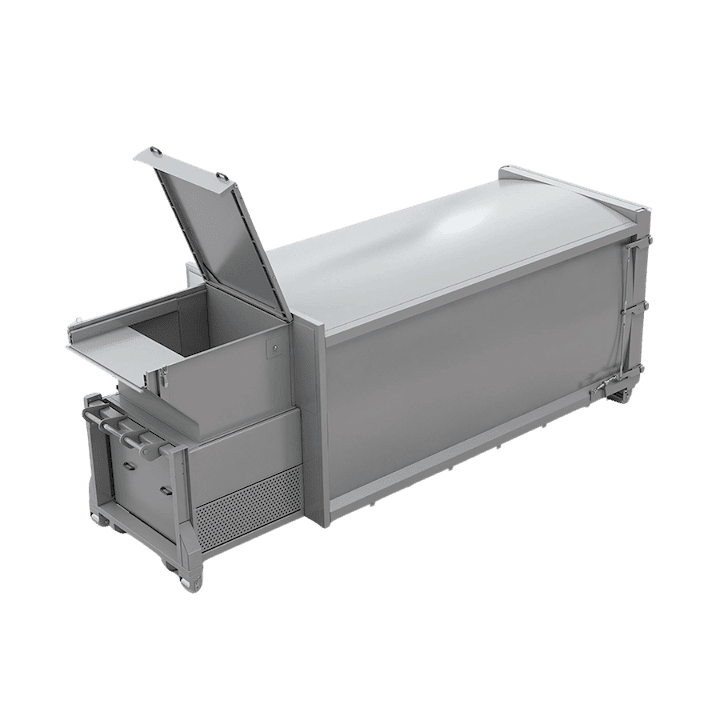

Mobile SCREW COMPACTOR Standard-Size
SCREW COMPACTOR
NO FEEDER DEVICE

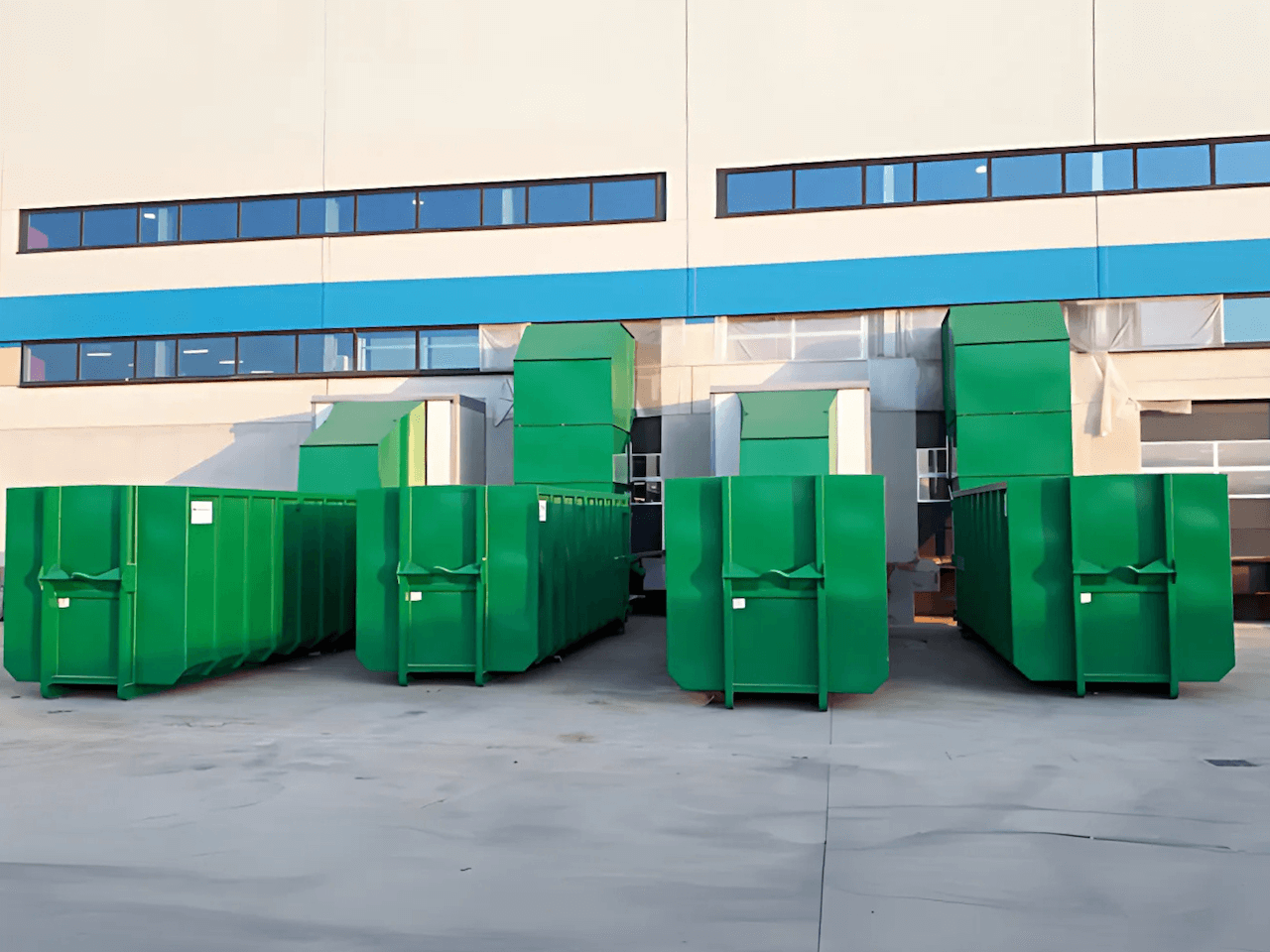

All Standard-Size Screw Compactors are also available as mobile units with container volumes of 23 m³ / 26 m³ / 29 m³.
Fractions:
Residual waste, foils, polystyrene, pre-crushed PET bottles

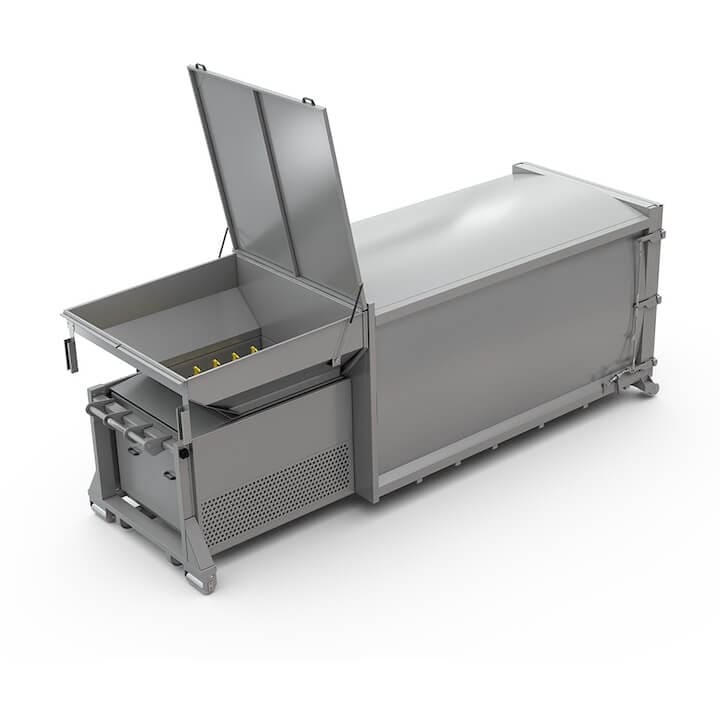

SCREW COMPACTOR

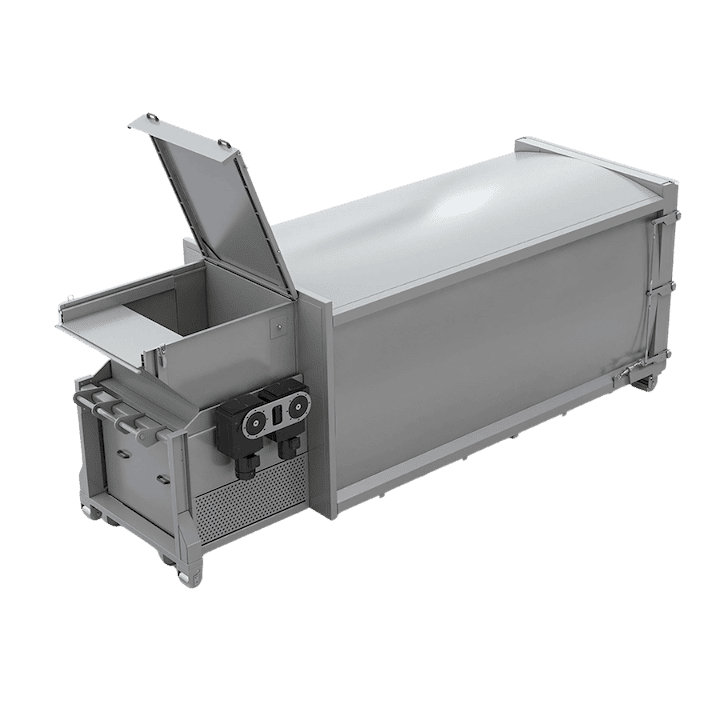

WITH HEAVY DUTY CARDBOARD FEEDER DEVICE OR CARDBOARD PRE-SHREDDER
All Standard-Size Screw Compactors are also available as mobile units with a container volume of 23 m³ / 26 m³ / 29 m³.
Fractions:
Paper, heavy duty cardboard
Mobile SCREW COMPACTOR Large-Size
SCREW COMPACTOR
EQUIPPED WITH FEEDER DEVICE WOOD CRUSHER
The Large-Size Screw Compactor is also available as mobile units with a container volume of 23 m³/ 26 m³.
Fractions:
Disposable pallets, Euro pallets, small wooden boxes, fruit boxes, furniture timbers
H&G FEEDER DEVICES

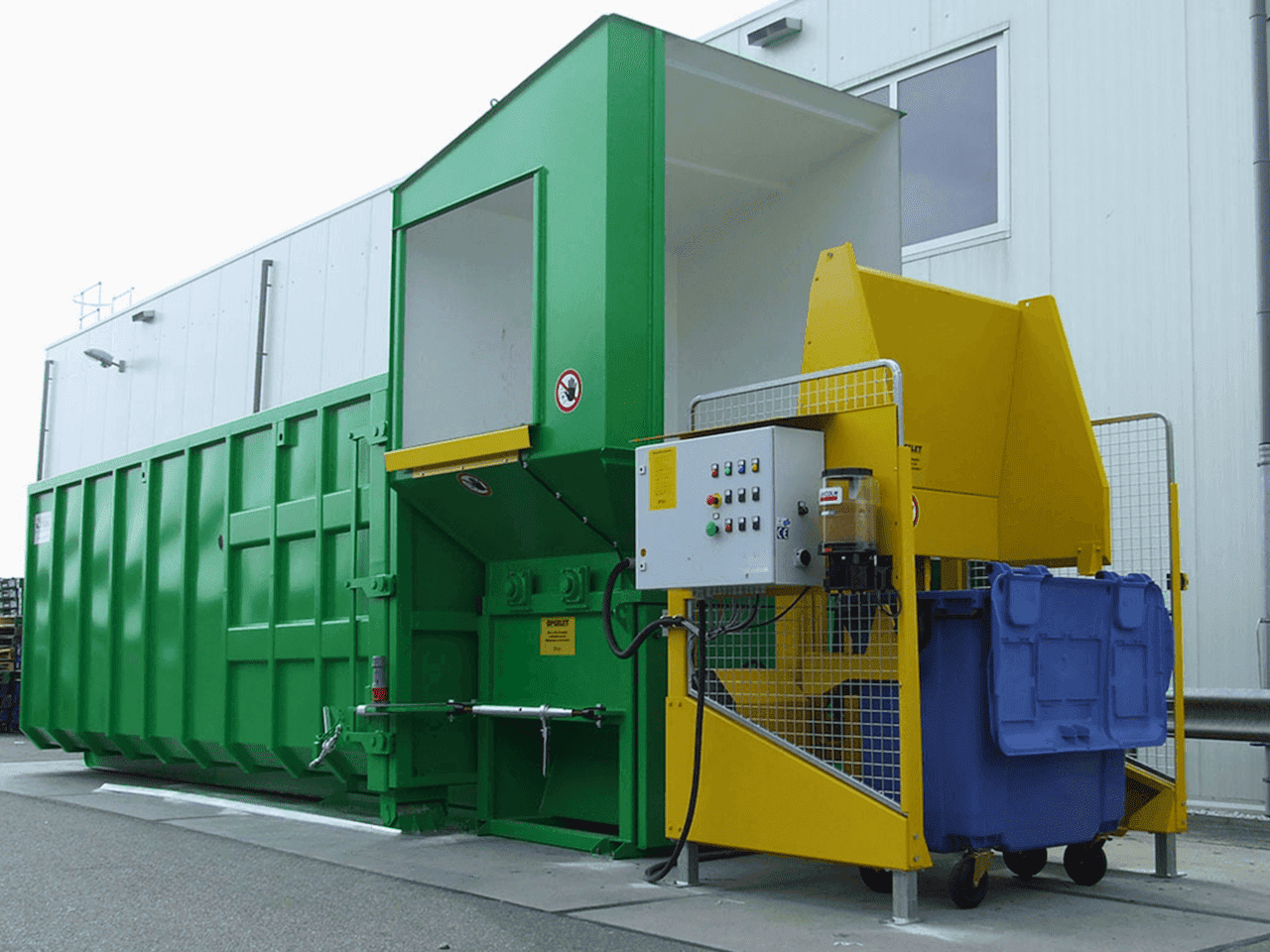

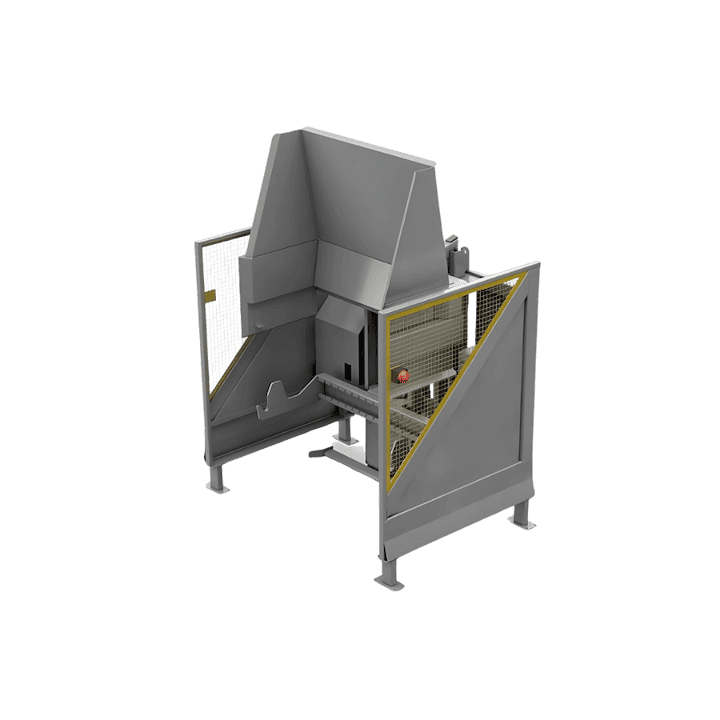

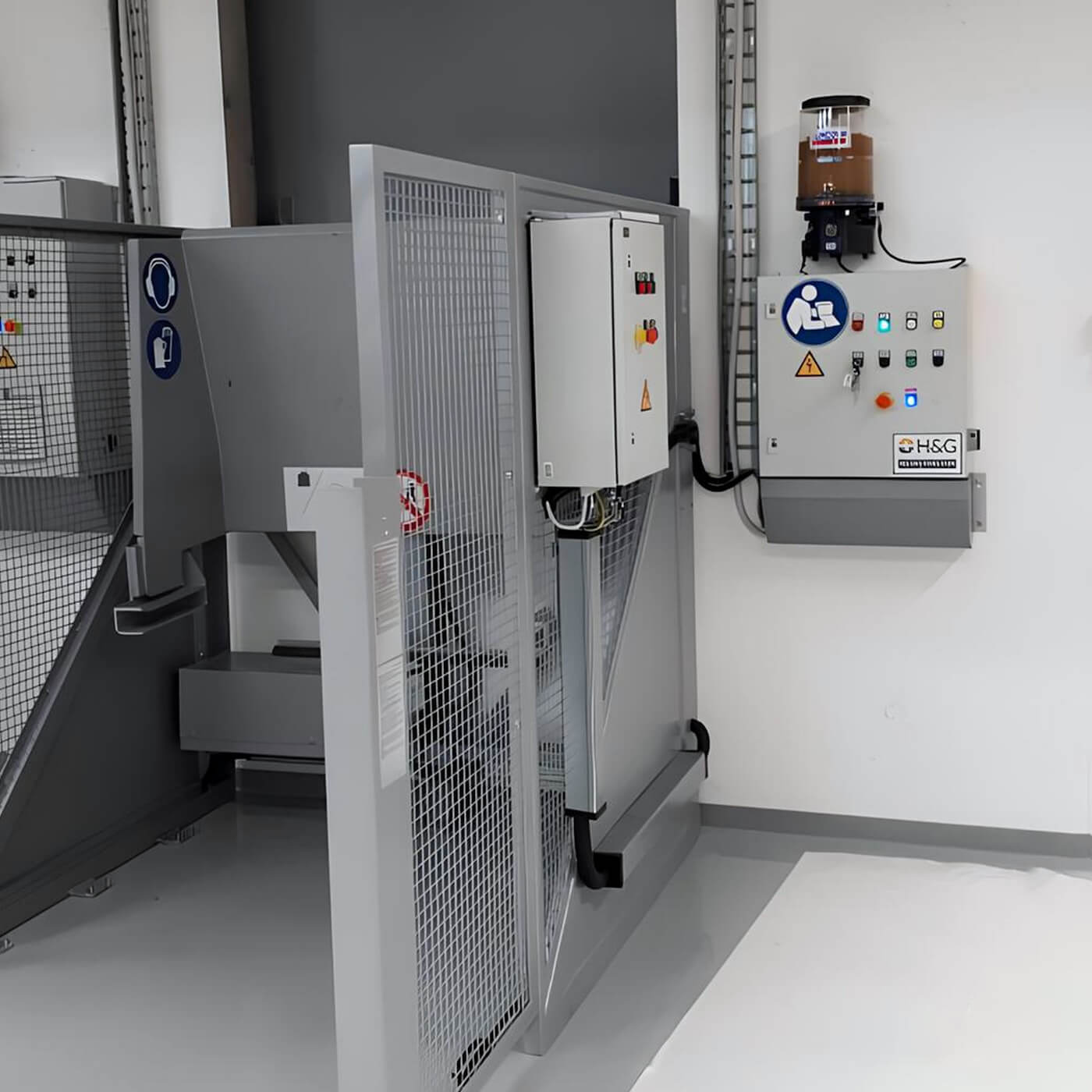

BIN LIFTER
Bin lifter devices are used in production and commercial companies where waste and recyclable materials are collected at a central point and subsequently compacted. As mobile or stationary models, the bin lifters can be used for DIN standard containers or adapted for use with special containers.

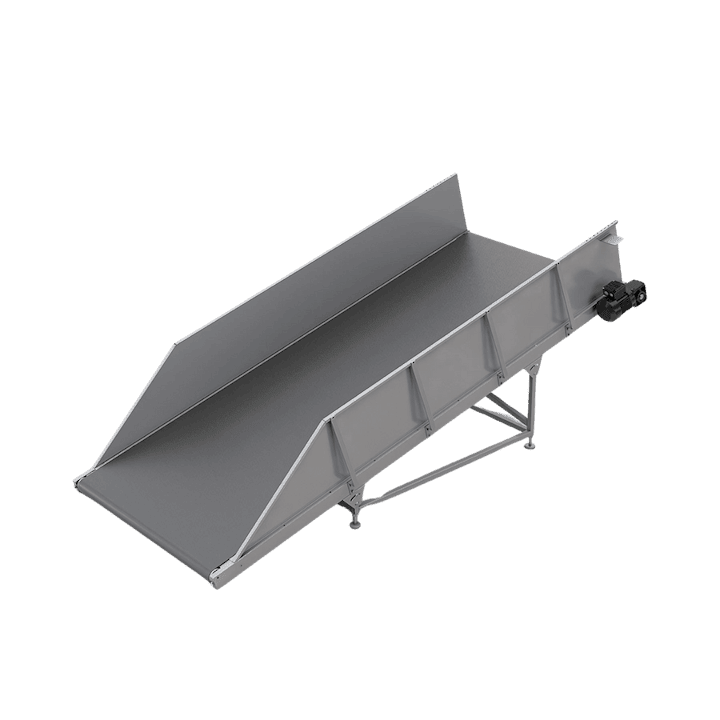

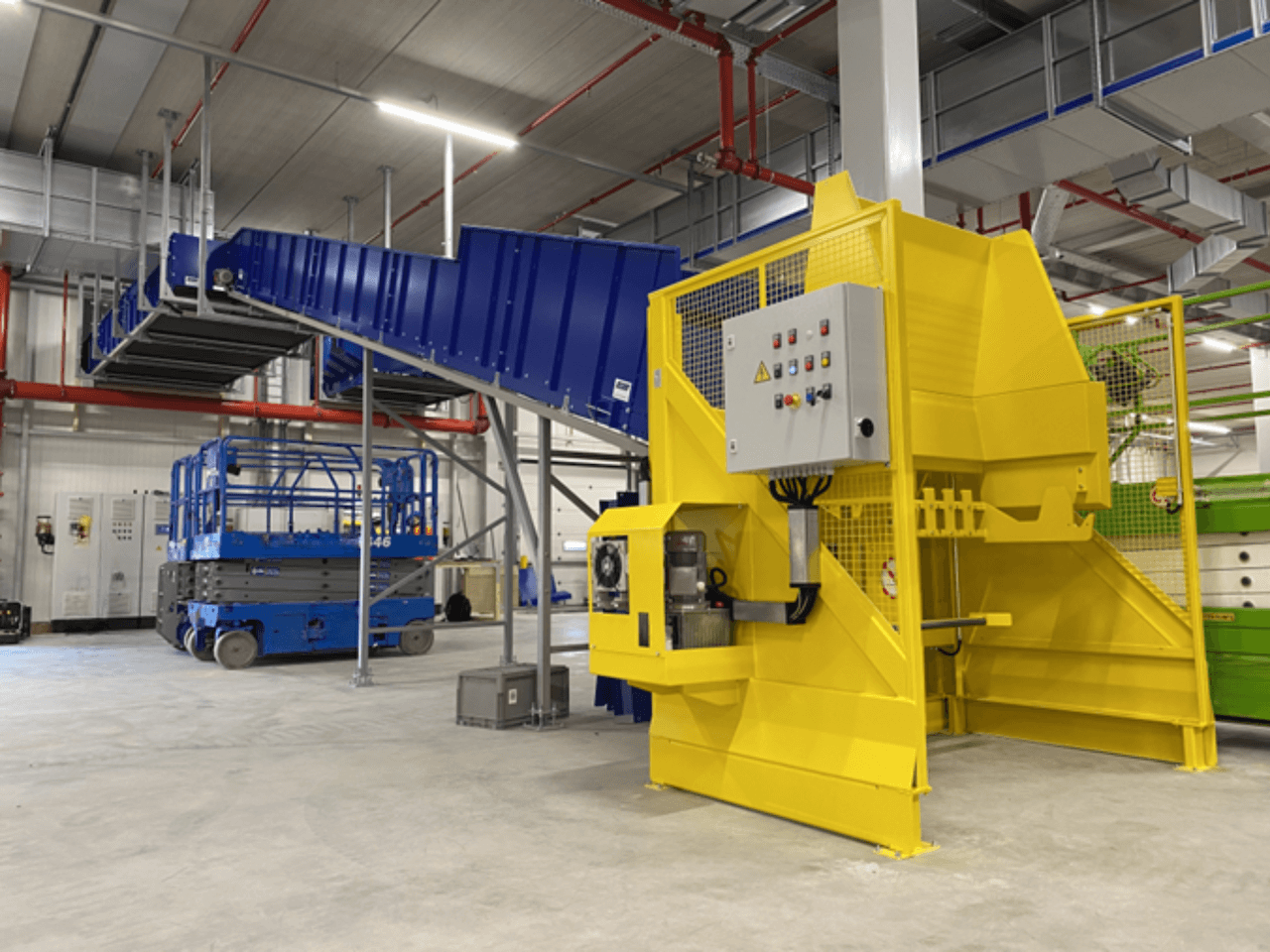

CONVEYOR BELT
Optimise the materials flow in your disposal logistics. Conveyor belts have really proved their worth in many areas of application. We supply conveyor systems that can be linked to our waste disposal equipment or we can integrate your systems into our plant technology.

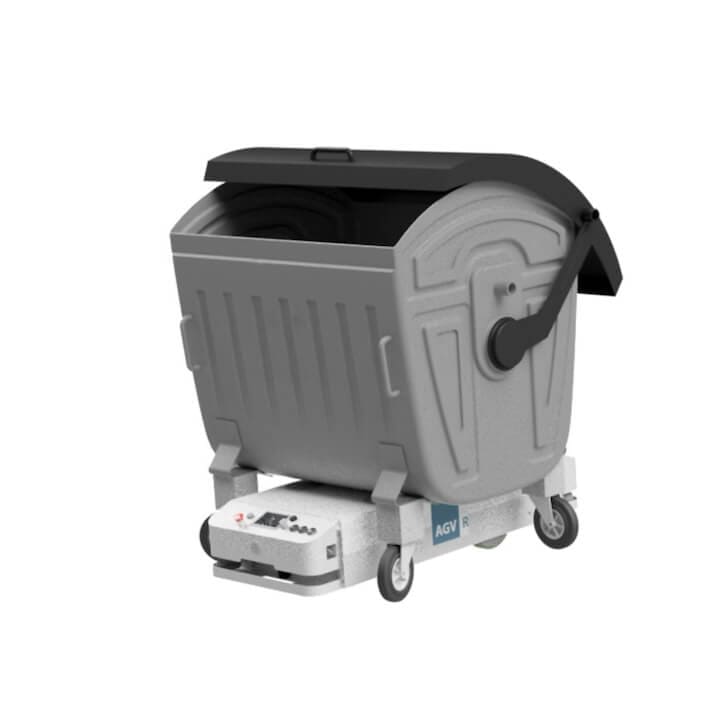

DRIVERLESS TRANSPORT SYSTEMS
Driverless transport systems automate in-house waste logistics by transporting waste inside the company without the need for any actual manpower. In cooperation with the Dutch enterprise AGVR, H&G has developed a fully automated transport system for your waste or recyclable fractions.
You are already using driverless transport systems? They can also be easily combined with our waste disposal control technology.
You are already using driverless transport systems? They can also be easily combined with our waste disposal control technology.
H&G CUSTOMISATION
SMART CONTROL TECHNOLOGY

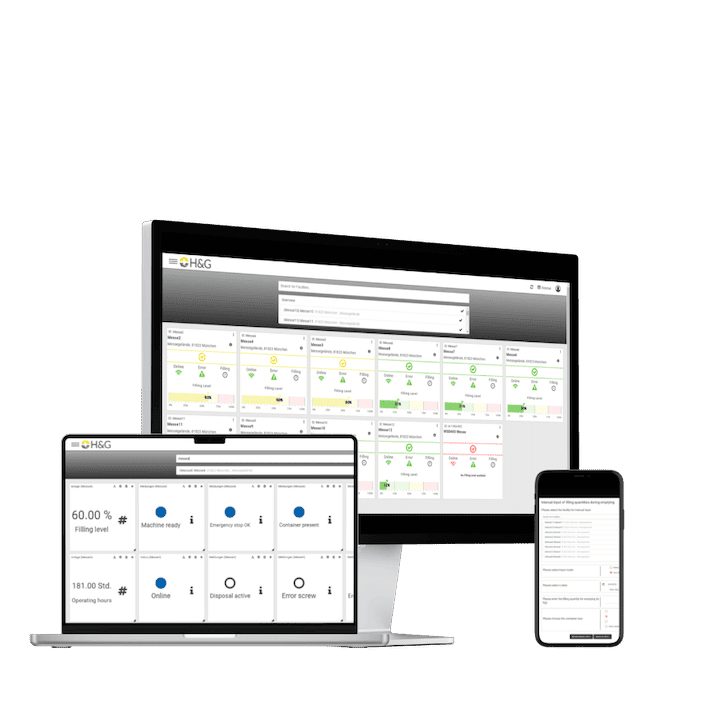

Following the Industry 4.0 trend in waste disposal technology, H&G now supplies innovative Smart controls for Screw Compactors to enable remote diagnostics and the adjustment of various parameters for process optimisation and increased efficiency. Automatic “80% Full” and “Container Full” messages by e-mail make sure you always have disposal logistics under control.
DATA BASE
Our online platform the visualisation and processing of the data transmitted to the portal by Smart Control. User-based invoices can be made quickly and reliably, based on the access and weighing data transmitted.

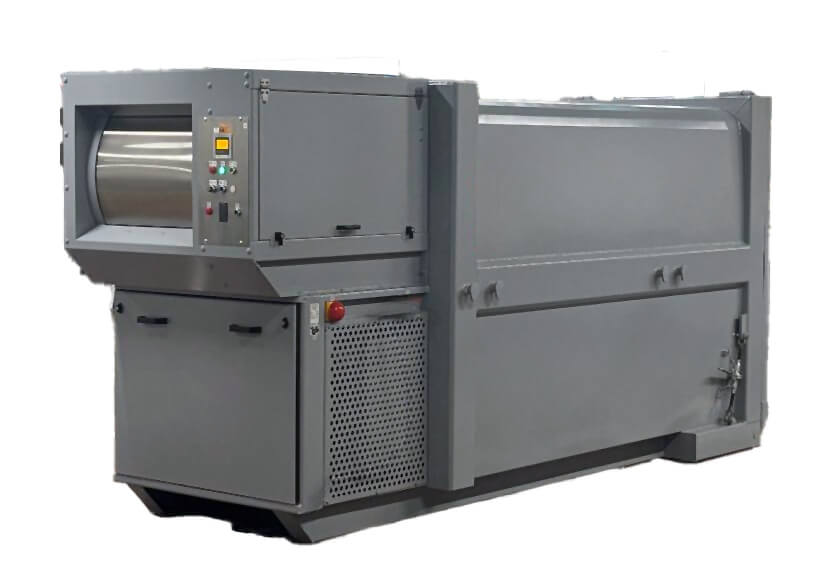

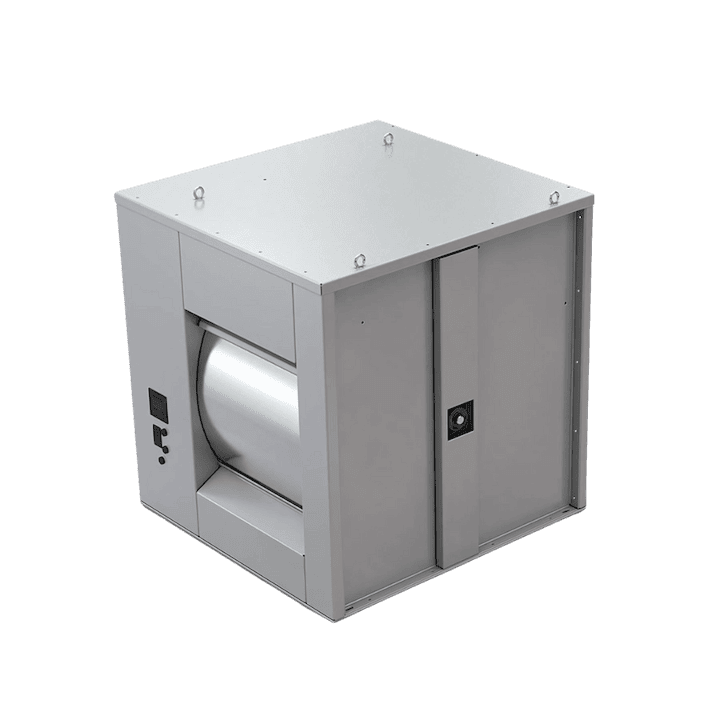

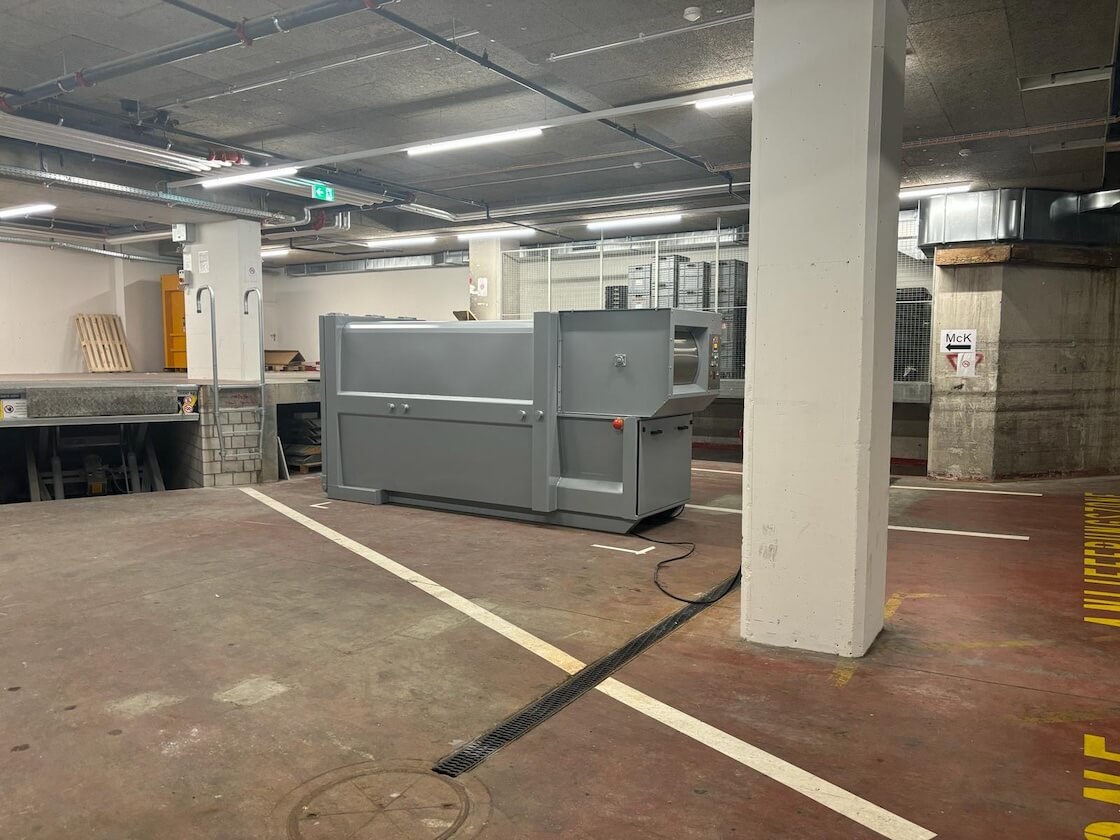

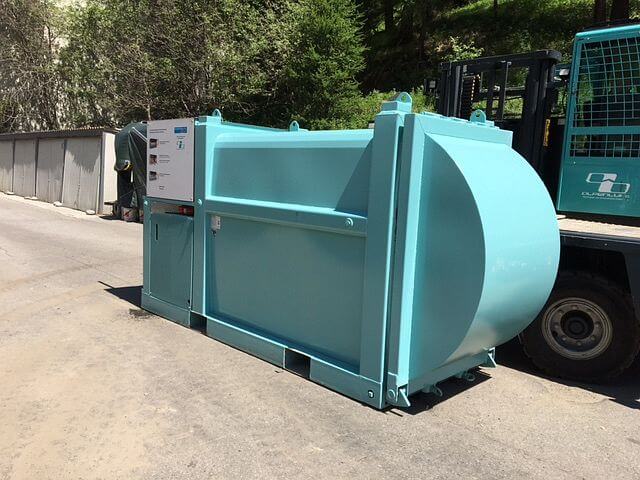

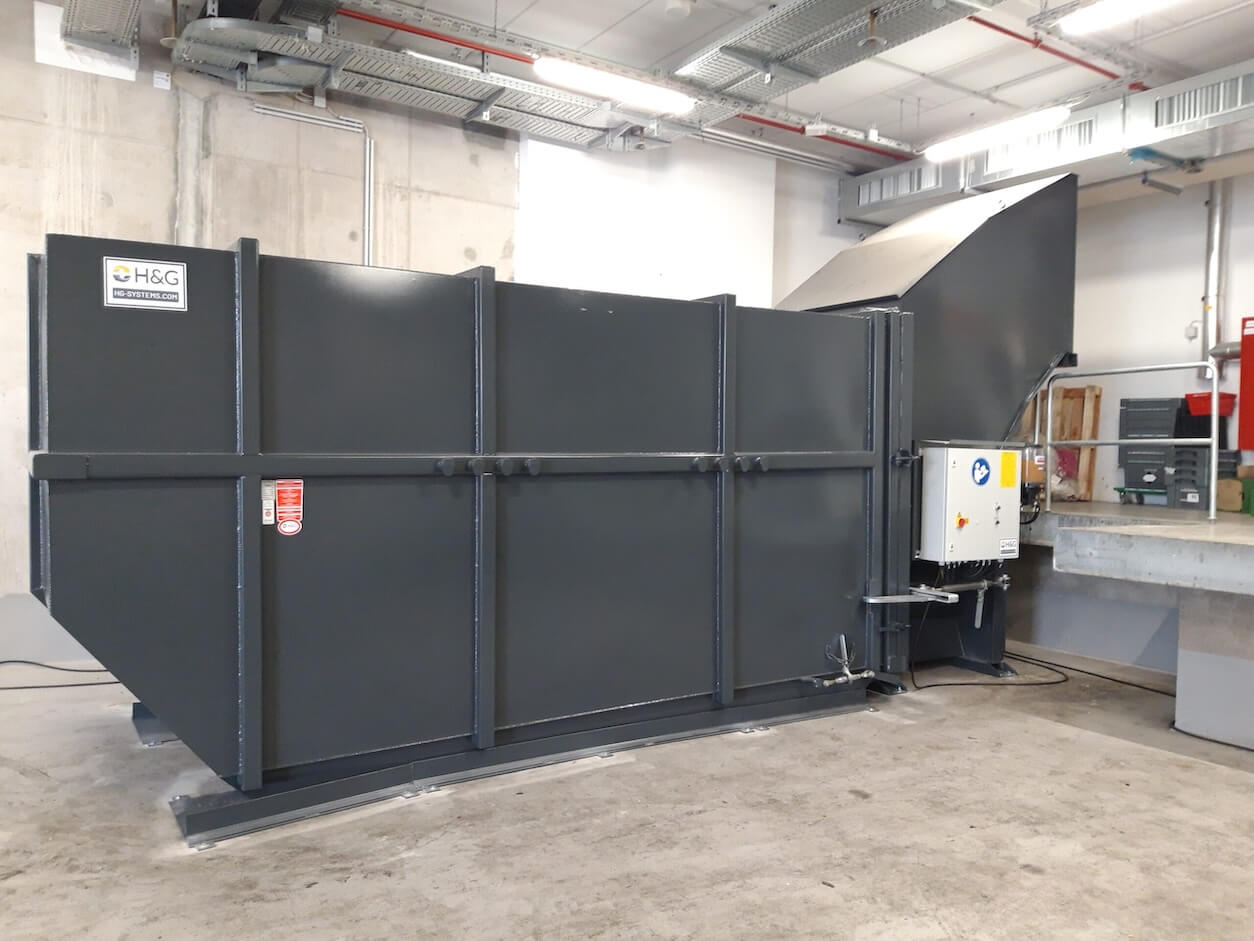

WEIGHING SYSTEMS
For user-based recording of waste disposal data and legally reliable invoicing, access and weighing systems from H&G are the perfect solution. Waste compactors and bin lifters can be equipped with the H&G weighing and access control systems.
